Propulsion

Power plants

I have been fiddling with the new Mabuchi motors that I received and so far they look large and promising.  At 7.4v they appear to have similar torque to my geared down Maxons but also appear to be even slower and more precise.  I am disappointed to see that they only have 2 M3 mounting holes as opposed to what seems to be a standard 4 holes.  I am looking forward to making a temporary motor mount and exploring how they perform.   Last night I confirmed that everything

Rudder Construction

rudder-06.JPGThis afternoon Kyle and I made some rudders for Nassau. I decided to make nice looking airfoil shaped rudders out of brass. It turned out to be a lot easier than I expected. Its actually a fair bit easier to make the airfoil rudders than soldering up flat brass rudders. Here are the steps we took when making the rudders.

Propeller Shaft Bushings

bushing_01.JPGThis is the first ship I have built since Diana gave me the lathe (don't I have a wonderful wife!?). Instead of using small bits of telescoping tubing I decided to make proper bushings for my propeller shaft assemblies. To make things a little more interesting I decided to make them tight enough for an interference fit so I would not need to glue or solder them.

Motor Mount

motor_mount_06.JPGThis weekend I spent a lot of time determining what motors would fit where in Nassau. If possible I really want to only run the center propeller. The fast gunners have some experience with this hull shape and tell me that will result in the best maneuverability. Unfortunately only a little 280 motor will fit inline behind the aft turrret - and then only if I move the turret 0.5" out of scale. I doubt that the 280 by itself would be powerful enough so I made a motor mount that places the motor above the propeller shaft instead of inline with it.

Stuffing Tubes and Rudder Posts

stuffing-05.JPGThis weekend I took some time and installed Nassau's stuffing tubes and rudder posts. The trick is to get everything installed with everything lined up. This is the second time I have used this technique and it works well. This post gives an overview of the techique I used and shows pictures of my progress.

Reshafting Missouri - Updated 5&8 July

So, picking up where my U-joints were when last I posted (see previous blog post, Building a U-Joint)...

Building a U-Joint

U-Joint Full AssemblySo, I determined it was time to replace the U-Joints on Missouri. The U-joints that came with Seydlitz were pefect for the job, so I went out in search of a matching pair this morning. Unfortunately, I got met with blank stares at my local RC Hobby shop (repleat with boats, planes, helicopters and cars - but a U-joint for a scratch-built boat.... unthinkable!), so I scoured the racks in search of suitable parts to make my own.

Considering McFadden-Style Motor Mounts

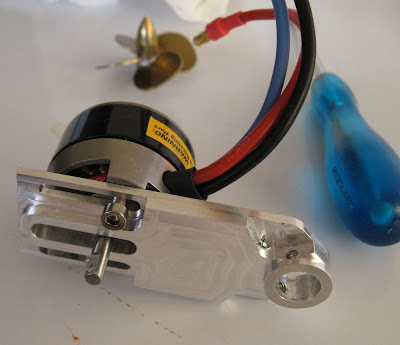

After a recent facebook exchange with Greg McFadden I noticed his February 7 post on RC Naval Combat showing the work he is doing on his SMS Baden. I really like how he integrated the motor mounts into the stuffing tubes. Its basically a two component setup - the first is a bracket that allows him to easily adjust the distance of the motor from the prop-shaft - this makes it easy to use a belt to drive the propellor. It also allowed him to place the motors aft of the stuffing tube (something I am going to also probably need)

Looking at Gear Boxes

I was thinking today that Brian has a lathe so he could probably bore out the pinions used in the gearboxes on Huntington rather precisely. When I did it back in the day I was using a hand drill so they're not exactly straight or precise and hence wobble a bit.
